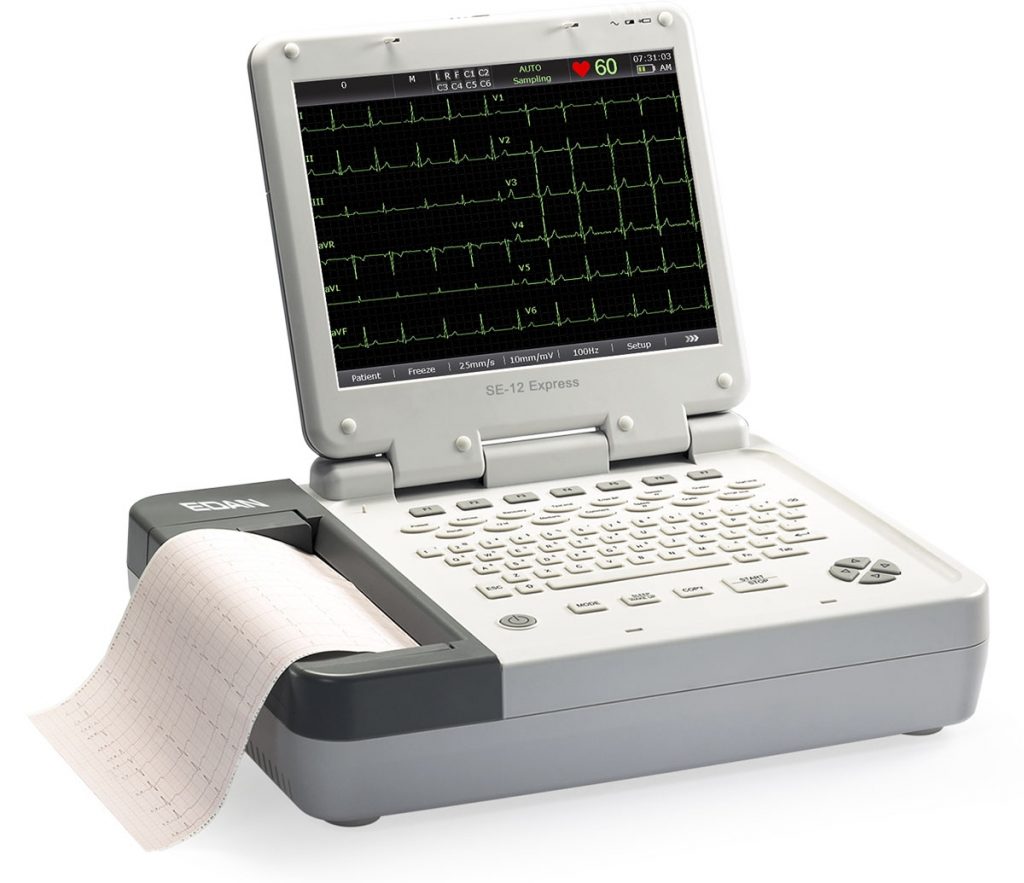

EDAN SE-12 Express — 12-Channel Resting & Exercise ECG Machine with Advanced Analysis
The EDAN SE-12 Express is a versatile, full-featured 12-channel ECG system uniquely designed to support both resting and exercise (stress) ECGs in a single device. The full alphanumeric keyboard combined with dedicated shortcut function keys makes transitioning between resting and stress test protocols seamless — eliminating the need for separate systems and streamlining cardiac diagnostic workflows.
The large 12.1-inch high-resolution foldable color TFT touch screen provides an expansive, clear view of real-time waveforms, with 120-second ECG waveform review and waveform freeze capabilities for thorough pre-print analysis. Automatic measurement and interpretation — validated against the authoritative CSE database — delivers reliable diagnostic support, while automatic arrhythmia detection and recording ensure critical findings are captured without manual intervention. ST analysis, ST reports, and Heart Rate Variability (HRV) analysis round out a comprehensive suite of cardiac diagnostic tools.
Complete digital filters resist baseline drift, AC interference, and EMG interference for clean, accurate waveform acquisition in real-world clinical environments. Internal memory stores up to 200 ECGs, and data transmission via Ethernet and RS-232 interfaces supports connectivity to a PC. ECG data can be exported in DAT, PDF, SCP, FDA-XML, and DICOM formats via the optional SE-1515 PC software, enabling seamless integration with electronic health record systems.
An optional Stress Upgrade Kit transforms the SE-12 Express into a complete exercise testing workstation, including all necessary connection cables and accessories for blood pressure monitors, treadmills, and bicycles.
Key Features:
- Supports both resting ECG and exercise/stress ECG in one device
- 12.1-inch high-resolution foldable color TFT touch screen
- Full alphanumeric keyboard with dedicated stress test shortcut keys
- 120-second ECG waveform review and real-time waveform freezing
- Waveform and auto-diagnosis preview before printing
- Automatic arrhythmia detection and recording
- Automatic measurement and interpretation — CSE database validated
- ST analysis, ST reports, and HRV analysis
- Complete digital filters for baseline drift, AC, and EMG interference resistance
- 200 ECG internal memory storage
- Ethernet and RS-232 data transmission
- ECG export in DAT, PDF, SCP, FDA-XML, and DICOM formats
- Optional SE-1515 PC software compatibility
- Optional Stress Upgrade Kit for a complete exercise testing setup
- 2-year warranty on main unit
