EDAN Diagnostics: F6 Antepartum Fetal Monitor (Twins Capable) - MUST ADD SECOND Fetal Heart Rate (FHR) ULTRASOUND TRANSDUCER TO MONITOR TWINS

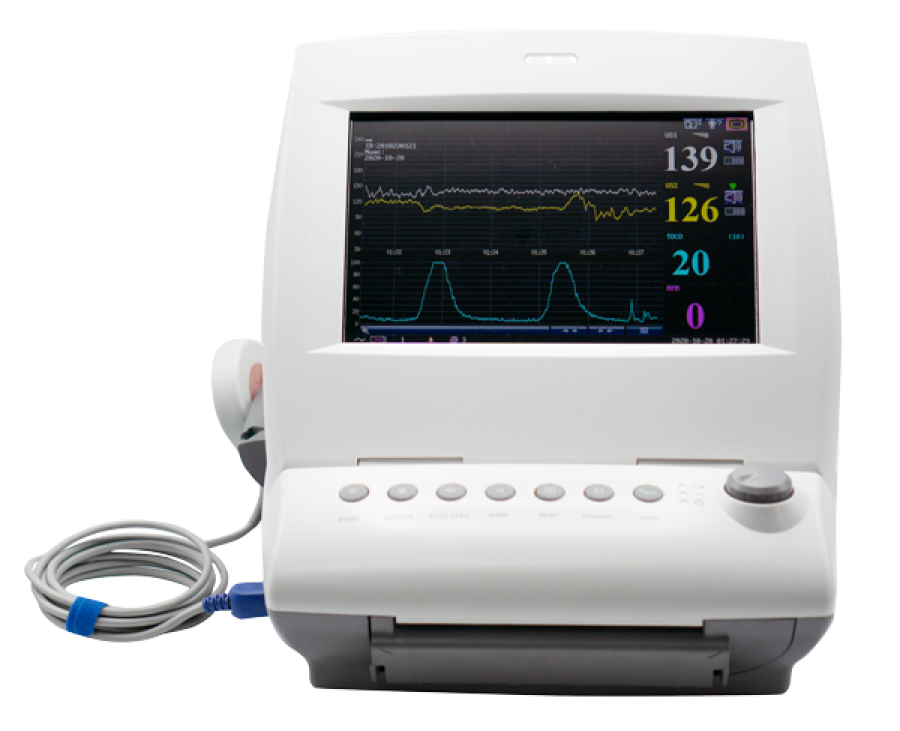

EDAN F6 Dual Fetal Monitor — Twins FHR | Hospital-Grade Antepartum & Intrapartum Monitoring
The EDAN F6 is a high-end, hospital-grade fetal monitor engineered to meet the demands of multi-bed units with central-station connectivity, while remaining intuitive enough for private obstetric practices and antepartum clinics. Versatile and portable, the F6 covers the entire continuum of antepartum and intrapartum applications — including moving situations — making it equally at home in large delivery units, private obstetricians' offices, and antepartum clinics.
A standout capability of the F6 is its dual FHR monitoring, allowing simultaneous tracking of both fetal heart rates in twin pregnancies. The multi-crystal pulse wave Doppler waterproof transducer ensures reliable, accurate FHR detection even in challenging clinical scenarios. Optional internal parameters, including IUP/DECG with 24-hour waveform playback, expand monitoring capability for high-acuity cases.
The 10.2-inch high-resolution color folding LCD screen provides a clear, detailed view of waveforms and parameters at the bedside. Signals Overlap Verification with +20/-20 offset during printing, combined with 150/152mm wide paper printing at 1, 2, and 3 cm/min real-time speeds and quick printing for stored waveforms, ensures thorough documentation throughout the monitoring period. A lithium battery supports up to 4 hours of continuous operation for use in transport or low-access settings.
Key Features:
- Dual FHR monitoring for twin pregnancies
- Basic parameters: FHR, TOCO, Event Mark, and AFM
- Optional internal parameters: IUP/DECG with 24-hour waveform playback
- Multi-crystal pulse wave Doppler waterproof transducer for FHR detection
- Signals Overlap Verification (+20/-20 offset during printing)

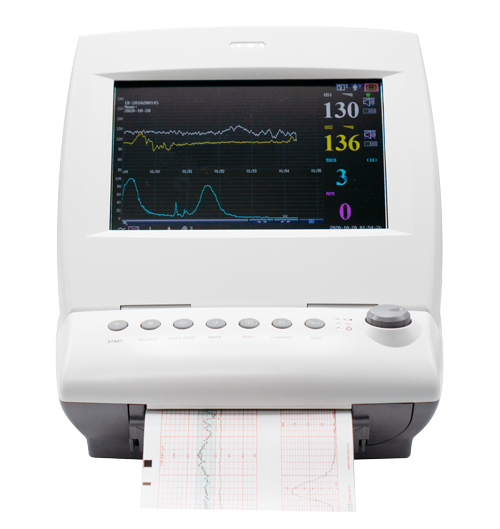

- 150/152mm wide paper printing at 1, 2, and 3 cm/min real-time speeds
- Quick printing for stored waveforms

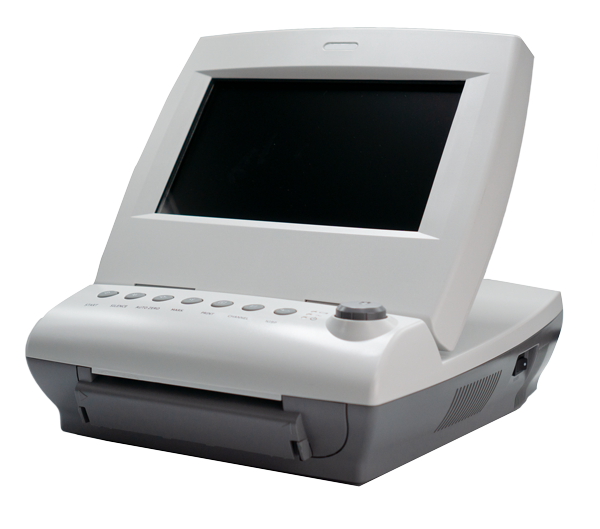

- 10.2-inch high-resolution color folding LCD screen
- Lithium battery for up to 4 hours of continuous use
- Probe rack and wall mounting rack included
- Suitable for large hospital delivery units, private practices, and antepartum clinics
F6 Includes the following items in box:
Pink Ultrasound FHR Transducer (standard): if twins option selected adds (1) Yellow Ultrasound FHR Transducer
TOCO Transducer
Event Marker
Rechargeable Lithium-ion Battery (4400mAh)
Belt
Ultrasound Gel (CE Mark, 250g)
Recording Paper (90mm*152mm*150p, US Standard )
User Manual
Quick Reference Guide
Guide to Fetal Heart Monitoring
Insight Software (CD)
Insight Software User Manual
Insight Connection Cable
Ethernet Cable
RS232 to USB Adapter and Driver CD (HL 340)
Ground Cable
