EDAN Diagnostics: F9 Express Intrapartum Fetal and Maternal Monitor with DECG+IUP and Touchscreen (Twins Capable) - MUST ADD SECOND Fetal Heart Rate (FHR) ULTRASOUND TRANSDUCER TO MONITOR TWINS
NOTE: Does not include IUP & DECG intrapartum accessories bundle unless selected above

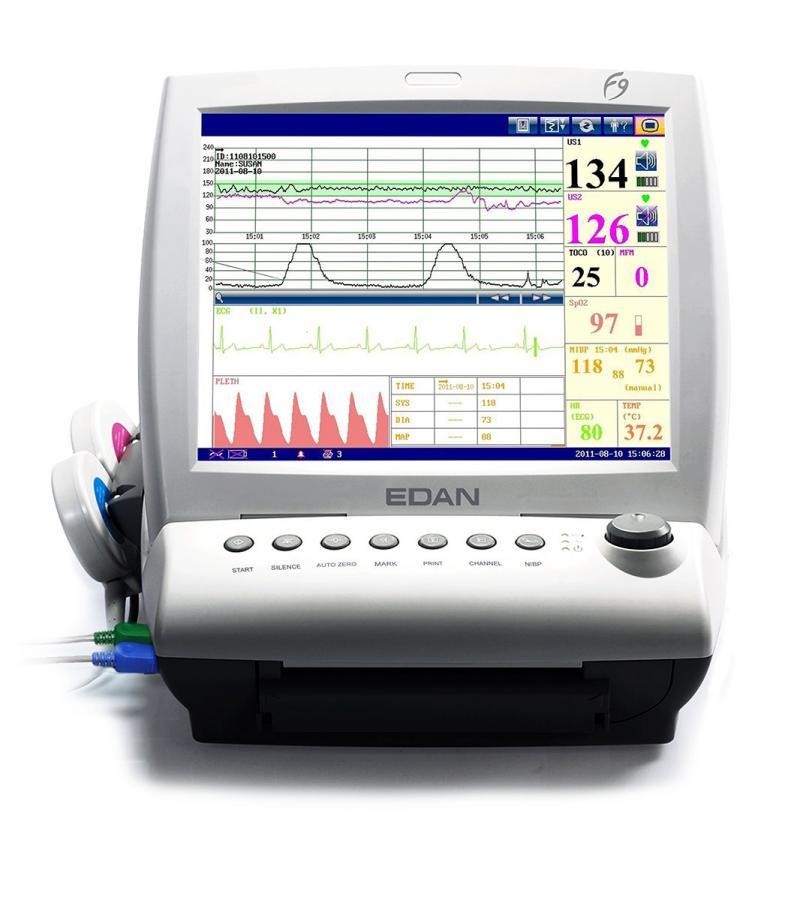

EDAN F9 Fetal & Maternal Monitor — Complete Antepartum, Intrapartum & Postpartum Monitoring
The EDAN F9 is a high-end fetal and maternal monitor representing the most advanced integrated monitoring solution for today's obstetric environments. Designed to serve the full continuum of antepartum, intrapartum, and postpartum care, the F9 Express is equally suited for large hospital delivery rooms, private obstetricians' offices, and antepartum clinics.
Featuring dual FHR (twins) monitoring with a 12-crystal pulse wave Doppler waterproof transducer, the F9 delivers exceptional fetal heart rate detection accuracy. Signal Overlap Verification for twin FHR with +20/-20 offset printing options ensures reliable differentiation between both fetal signals. Internal parameters IUP and DECG further expand monitoring depth for high-acuity cases, while 24-hour waveform playback and quick printing for stored waveforms support thorough clinical review and documentation.
Multiple display modes provide flexible visualization of fetal and maternal data, adapting to the clinician's workflow and the complexity of each case.
Comprehensive Maternal Monitoring Included
The F9 Express integrates full maternal patient monitoring right out of the box, with startup supplies and reusable cables included for a complete, ready-to-use solution:
- ECG / Heart Rate / Pulse Rate
- Non-Invasive Blood Pressure (NIBP)
- Pulse Oximetry (SpO2)
- Temperature
Included Reusable Cables & Accessories:
- 3-lead snap ECG cable
- Pulse oximetry cable with reusable adult finger sensor (additional options available)
- Blood pressure hose
- Reusable temperature probe (additional options available)
An optional built-in wireless module enables seamless connectivity to the FTS-3 or Central Nursing Station, supporting centralized monitoring across multi-bed units. PC data transmission is supported via Insight Software or CNS Lite for comprehensive record-keeping and analysis.
Key Features:
- Dual (twins) FHR monitoring with Signal Overlap Verification (+20/-20 offset printing)
- Full maternal monitoring: ECG, NIBP, SpO2, and Temperature
- Basic parameters: Twins FHR, TOCO, Event Mark, AFM, Maternal ECG, NIBP, SpO2, and Temperature
- Internal parameters: IUP and DECG
- 12-crystal pulse wave Doppler waterproof transducer for FHR detection
- 24-hour waveform playback and quick printing for stored waveforms
- Multiple display modes for flexible clinical visualization
- Optional built-in wireless module for FTS-3 or Central Nursing Station connectivity
- PC data transmission via Insight Software or CNS Lite
- Lithium battery for up to 4 hours of continuous use
- Startup supplies and reusable cables included

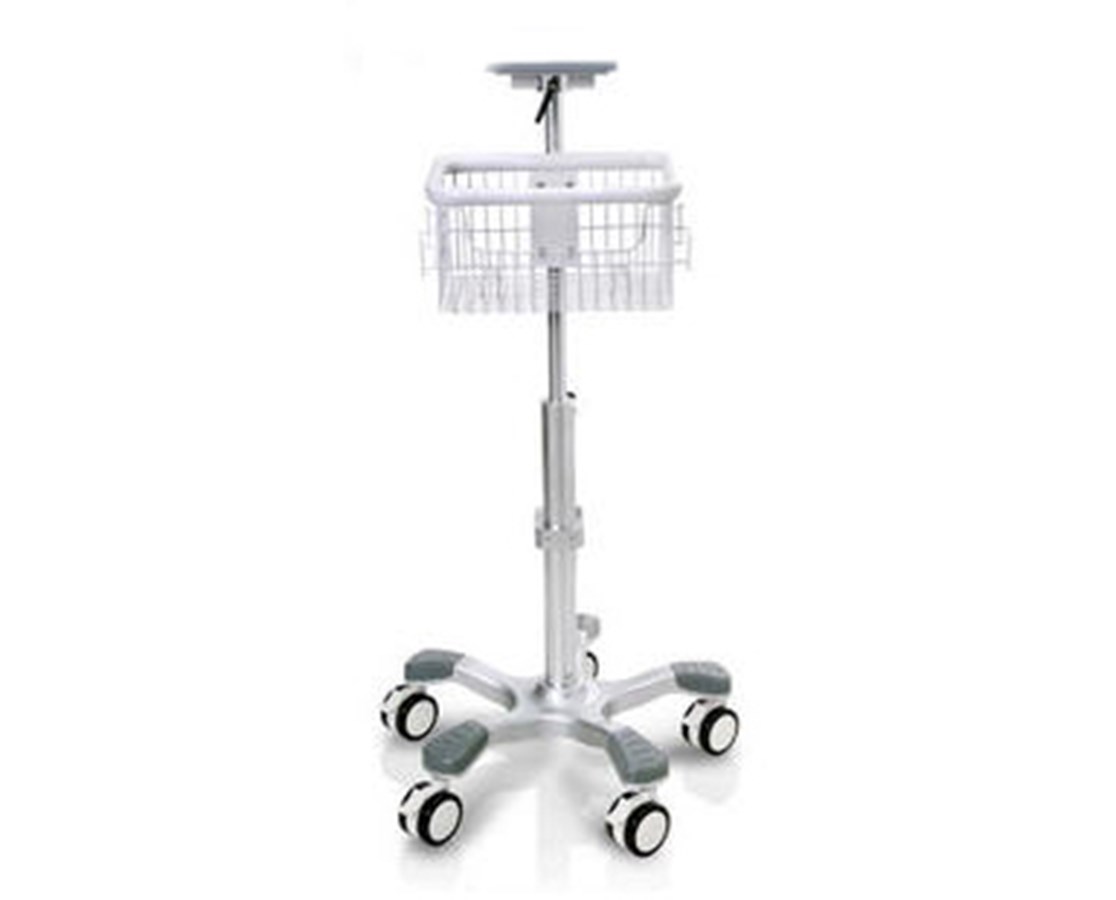

- Available with optional trolley
- 2-year warranty
F9 Express Includes the following items in box:
Pink Ultrasound FHR Probe (standard): if twins option selected adds (1) Yellow Ultrasound FHR Probe
TOCO Probe
Event Marker
Adult Reusable SpO2 Sensor
Temperature Skin Probe,Adult,Reusable(10K/25℃)
NIBP Tube
NIBP Cuff, Adult,27cm-35cm,reusable(has to work with EDAN NIBP tube)
ECG cable, 3-lead, snap, Defib, IEC, 3.4m, reusable
ECG Electrodes,adult,disposable,10 pcs/set
Rechargeable Lithium-ion Battery (4400mAh)
Belt
Ultrasound Gel(CE Mark, 250g)
Recording Paper (90mx152mmx150 pages, US Standard )
Power Cord (U.S.A. Standard)
User Manual
Quick Reference
Guide to Fetal Heart Monitoring
Insight Software (CD)
Insight Software User Manual
Insight Connection Cable
Ethernet Cable
RS232 to USB Adapter and Driver CD (HL 340)
Ground Cable
