SE-2003 3-channel Holter System
Overview
EDAN Diagnostics: SE-2003 3-channel Holter System or SE-2012 12-channel/3-channel Holter System (Software NOT included; see product EDA-HolterSoftware) || Item # SE-2003

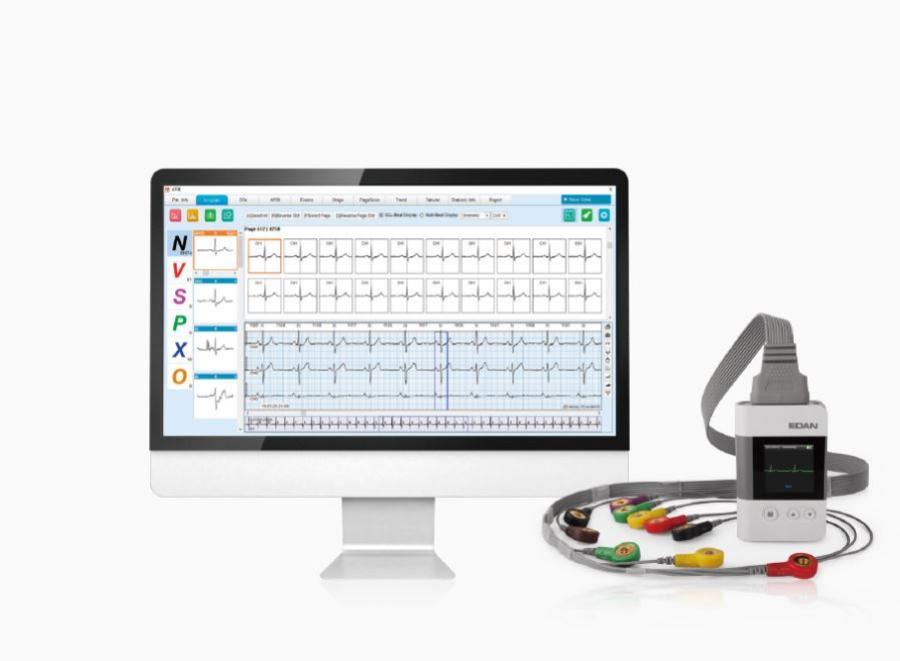

EDAN SE-2003 & SE-2012 Holter Recorders — Advanced Ambulatory ECG Recording
The EDAN SE-2003 and SE-2012 set a new standard in ambulatory cardiac monitoring with lightweight, compact digital recorders that offer meticulously optimized workflows and customizable parameters tailored to your clinical requirements. Primarily designed for detecting arrhythmias and other abnormal heart rhythms, both models excel at capturing the heart's intricate electrical activity with precision — supporting continuous ECG data recording on a single AAA battery for extended monitoring periods.

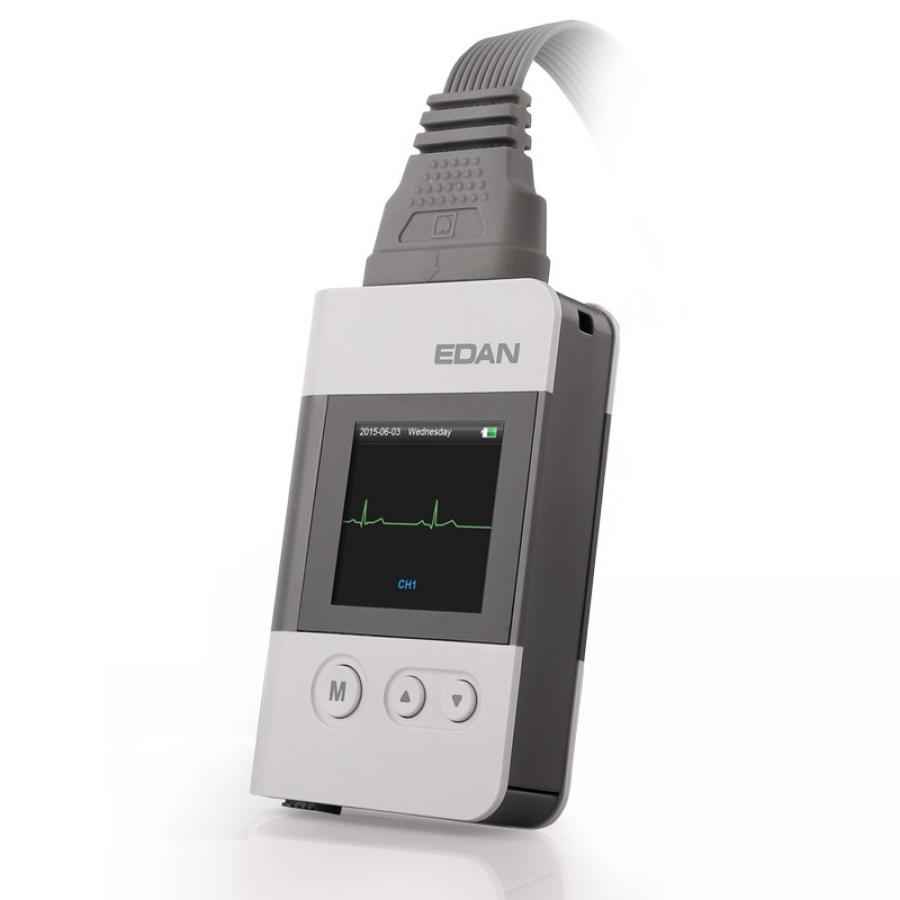

Patient-Friendly Recorder Design

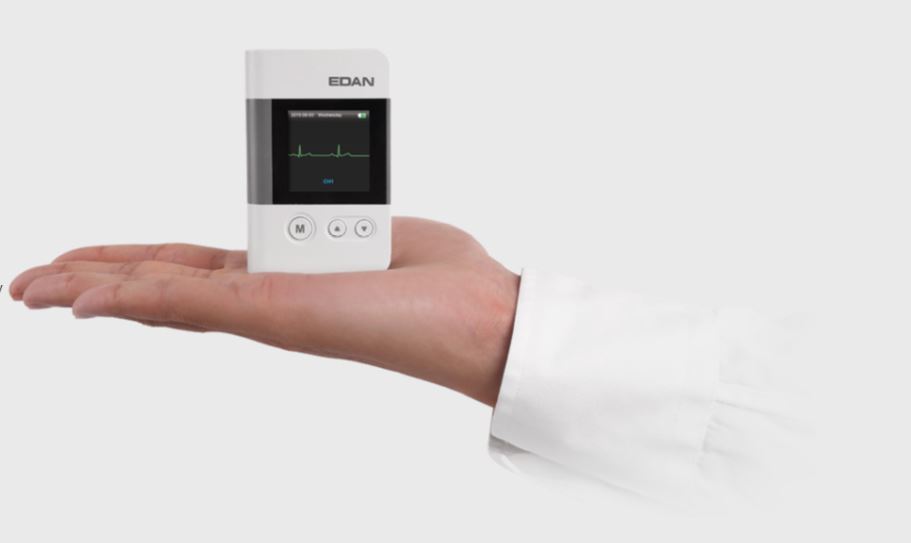

Weighing just 50g (excluding the battery) and measuring a compact 76mm × 49mm × 16mm, both recorders offer unmatched portability that places virtually no burden on patients during recording. The IP27 waterproof and dustproof rating allows patients to continue daily activities — including showering — without interruption. A 1.92" full-color screen displays real-time waveforms, recording time, system time, patient ID, and event markers for immediate at-a-glance confirmation of proper device operation. An Event Marker function allows patients to flag special moments by pressing M on the device, instantly marking abnormal symptoms on the recorded signal for targeted review during analysis.
SE-2003 vs SE-2012 — Choose the Right Model
Both the SE-2003 and SE-2012 share the same compact form factor, IP27 waterproof rating, pacemaker detection, event marker function, and up to 8 days of maximum recording time. The key differences are:
- Channels: The SE-2003 records 3 channels, while the SE-2012 offers flexible 3- or 12-channel recording for full 12-lead ambulatory ECG capability
- ECG Cable: The SE-2003 includes a 7-electrode AHA cable; the SE-2012 includes a 10-electrode AHA cable
- Auto Channel Identification: The SE-2012 features automatic 3/12-channel identification — not available on the SE-2003
- Battery Life at 1,024 Hz: The SE-2003 delivers 48 hours; the SE-2012 delivers 24 hours
- Battery Life at 128 Hz: The SE-2003 delivers up to 192 hours; the SE-2012 delivers up to 144 hours
The SE-2003 is ideal for practices requiring reliable 3-channel Holter recording with extended battery life. The SE-2012 is the preferred choice for practices that need comprehensive 12-lead ambulatory ECG recording and advanced arrhythmia analysis.
Key Recorder Features (Both Models):
- 3-channel digital recording (SE-2003); 3 or 12-channel (SE-2012)
- Up to 8 days of recording on one AAA battery
- Pacemaker detection (±1 mV–±200 mV, 0.1 ms–2.0 ms)
- IP27 waterproof and dustproof — safe for daily use including showering
- Lead-off detection and low-power detection
- Auto identification of cable
- 1.92" full-color real-time waveform display
- Event Marker function for patient-initiated signal flagging
- Data storage via industrial-grade 1GB micro SD card
- Fast data transmission via USB cable or SD card reader
- Adjustable sampling rates
- 24-bit A/D conversion at 25.6 kHz sampling frequency
- Input impedance ≥ 50 MΩ | CMRR ≥ 100 dB
- Lightweight 50g design for unrestricted patient mobility
Included Accessories:
- Holter recorder (SE-2003 or SE-2012)
- ECG cable — 7-electrode AHA (SE-2003) or 10-electrode AHA (SE-2012)
- 1GB industrial-grade SD card
- USB cable for PC connection
- Adult disposable adhesive electrodes
- Holder, belt, and carrying bag
- Holter Analysis Software — one license per PC (compatible with multiple recorders)
Technical Specifications:
- Dimensions: 76 mm × 49 mm × 16 mm
- Weight: 50g (excluding battery)
- Display: 1.92" full-color screen
- Battery: 1 AAA alkaline, LiFe, or Ni-MH
- Frequency Response: 0.05 Hz–100 Hz (-3 dB)
- A/D Resolution: 24-bit
- Gain: 5 / 10 / 20 mm/mV ±5%
- Recording: Full disclosure, no data compression
- Data Storage: 1GB micro SD card (industrial grade)
- Data Transmission: USB cable or SD card reader
- Dust & Water Proof: IP27
